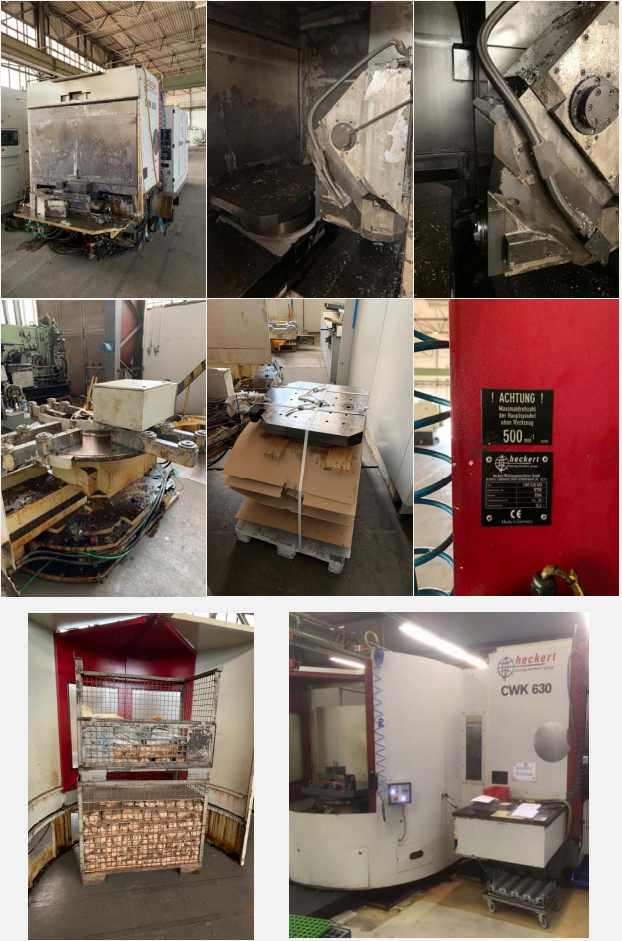

锟斤拷锟絘(ch锟斤拷n)锟絊锟斤拷 / Manufacturer: | 斯锟斤拷锟斤拷锟斤拷-锟�锟斤拷锟斤拷兀锟絊tarrag Heckert锟斤拷 |

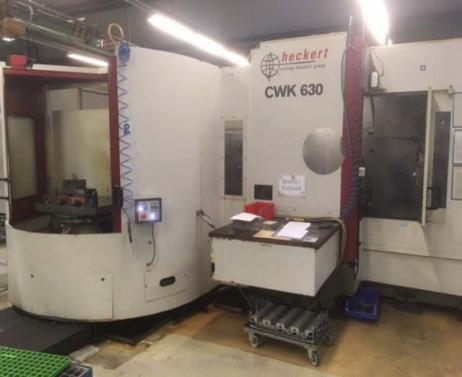

锟紺(j锟斤拷)锟斤拷锟斤拷號(h锟斤拷o) / Machine model: | CWK 630 H/V |
锟斤拷锟絊锟斤拷锟斤拷 / Year of produce: | 2000 |
锟紺(j锟斤拷)锟斤拷锟斤拷號(h锟斤拷o) / Serial number: | 12100 |
锟斤拷锟斤拷系锟統(t锟斤拷ng) / Control system: | Siemens 840D |
锟斤拷锟絊锟紻(zhu锟斤拷n)锟斤拷 / Spindle speed: | 20~4000 rpm |
锟斤拷锟絊锟斤拷锟斤拷 / Spindle power: 60%ED / 100%ED | 27.5/22 kW |
锟斤拷锟絊扭锟斤拷 / Spindle torque: 60%ED / 100%ED | 1000/800 Nm |
锟斤拷锟絊锟紽锟饺ｏ拷锟斤拷锟絇锟紻(zhu锟斤拷n)锟絈锟斤拷 / Spindle taper (H/V): DIN 69871-AD | SK 50 |
XYZ锟絊锟叫筹拷 / XYZ axis travel: | 1000/600/1000 mm |
XYZ锟絊锟組(j锟斤拷n)锟給锟劫讹拷 / XYZ feed rate: | 32000 mm/min |
锟斤拷锟斤拷锟絖(t锟斤拷i)锟竭达拷 / Table size: | 630 x 630 mm |
锟斤拷锟斤拷锟絖(t锟斤拷i)锟斤拷锟斤拷 / Table loading capacity: | 1250 kg |
B锟絊锟街讹拷 / B axis indexing: | 360 x 0.001 锟斤拷 |
锟斤拷锟斤拷锟絖(t锟斤拷i)锟紻(zhu锟斤拷n)锟斤拷 / Table speed: | 16.5 rpm |
锟斤拷锟斤拷锟斤拷锟紻(zhu锟斤拷n)锟斤拷锟絞 / Workpiece rotation space: | 锟斤拷1000 x 1050 mm |
锟�?zh锟斤拷n)锟斤拷锟斤拷?k锟斤拷)锟斤拷锟斤拷 / Chain tool magazine capacity: | 60 |
锟斤拷蟮毒锟街憋拷锟� / Max. tool diameter: | 125/250 mm |
锟斤拷蟮毒锟斤拷L(zh锟斤拷ng)锟斤拷 / Max. tool length: | 450 mm |
锟斤拷锟斤拷锟斤拷锟斤拷锟斤拷锟� / Max. tool weight: | 35 kg |
锟斤拷锟紹锟斤拷負(f锟斤拷)锟絛 / Total connecting power: | 96 kVA |
锟斤拷锟� / Power supply: | 400 V/50 Hz |
锟紺(j锟斤拷)锟斤拷毛锟斤拷 / Machine gross weight: | 21 t |
锟斤拷锟轿尺达拷 / Machine dimension: | 5900 x 4200 x 3270 mm |
锟絊锟紺(j锟斤拷)锟斤拷锟斤拷 / Peripheral equipments and accessories: | 锟斤拷锟絋锟斤拷840D锟斤拷(sh锟斤拷)锟斤拷系锟統(t锟斤拷ng) / Siemens 840D controls. |
| 電氾拷锟饺拷锟斤拷锟斤拷| / Electric cabinet and connecting cables. |
| 锟紺(j锟斤拷)锟斤拷锟斤拷锟給(h锟斤拷)锟斤拷 / Protection hood and sheet metals. |
| 锟狡勶拷(d锟斤拷ng)锟斤拷锟狡終锟斤拷 / Mobile operating panel. |
| 液锟斤拷站锟斤拷全锟斤拷锟斤拷路 / Hydraulic station and all pipes. |
| 锟斤拷锟斤拷式锟斤拷s锟絕(gu锟斤拷)锟絍锟斤拷元 / Paper-band coolant and filtration unit. |
| 锟斤拷屑锟斤拷 / Chip conveyor. |
| 锟斤拷锟絈锟叫板（锟斤拷(n锟斤拷i)1锟斤拷4锟斤拷 / Switching pallets (inner 1 and outer 4). |
| 锟斤拷锟斤拷锟斤拷锟絪100锟窖ｏ拷 / Tool arbors (around 100 pieces). |
| BWF锟斤拷锟絖锟絴锟紽 / BWF machine fixators. |
| 全锟阶機(j锟斤拷)锟斤拷锟街冿拷(c锟斤拷) / Full technical manuals: |
